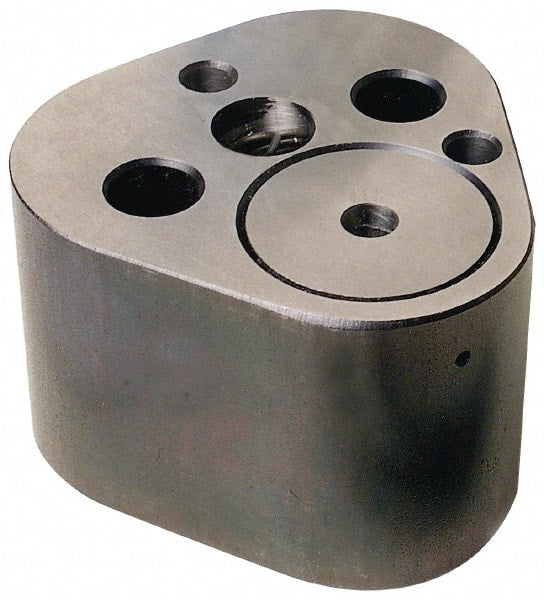

Dayton Lamina - 1/2" Shank Diam, 2" Base Length x 1.97" Base Width x 1-1/4" Base Height, 3/8-16 Thread, Alloy Steel Mold Punch Retainer - 1/4" Dowel Diam, 3/4" Length Between Dowel & Screw, 1-1/2" Thread Length, Ball Lock, Light Duty (LRT) Series - Exact Tooling

Dayton Lamina - 1/2" Shank Diam, 2" Base Length x 1.97" Base Width x 1-1/4" Base Height, 3/8-16 Thread, Alloy Steel Mold Punch Retainer - 1/4" Dowel Diam, 3/4" Length Between Dowel & Screw, 1-1/2" Thread Length, Ball Lock, Light Duty (LRT) Series


Item #: 79077764
Brand: Dayton Lamina
Model #: LRT50
Exact Tooling IR#: 04

Features and Benefits

Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
Product Specifications
Shank Diameter (Inch) 1/2
Shank Diameter (Decimal Inch) 0.5000
Base Length (Inch) 2
Base Length (Decimal Inch) 2.0000
Base Width (Decimal Inch) 1.9700
Thread Size 3/8-16
Thread Length (Inch) 1-1/2
Base Height (Decimal Inch) 1.2500
Locking Type Ball Lock
Dowel Diameter (Decimal Inch) 0.2500
Dowel Diameter (Inch) 1/4
Length Between Dowel & Screw Hole (Inch) 3/4
Length Between Dowel & Screw Hole (Decimal Inch) 0.7500
Width Between Dowel & Screw Hole (Inch) 1-1/8
Width Between Dowel & Screw Hole (Decimal Inch) 1.1250
Length Between Punch Shank & Dowel (Decimal Inch) 1.1800
Material Alloy Steel
Includes (2) Dowels; (2) Screws; Ball; Ball Release Set Screw; Spring
Series Light Duty (LRT)
$ 93.13
