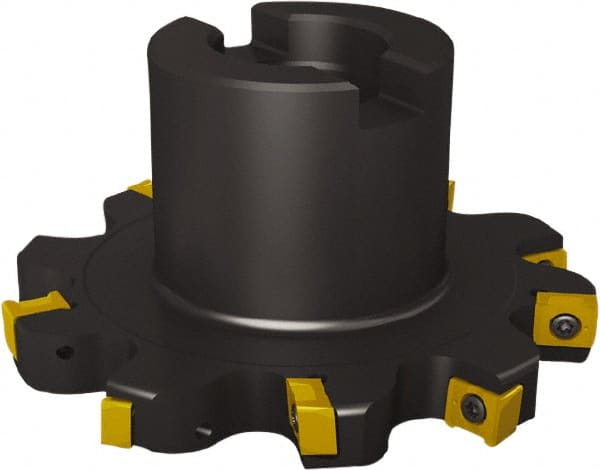

Seco - Shell Mount Connection, 1/2" Cutting Width, 0.713" Depth of Cut, 3" Cutter Diam, 1" Hole Diam, 4 Tooth Indexable Slotting Cutter - R335.18 Toolholder, LNK.. 08.. Insert, Right Hand Cutting Direction
Item #: 79159950
Brand: Seco
Model #: 21515
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Depth of Cut (mm) | 18.11 |
| Maximum Depth of Cut (Decimal Inch) | 0.7130 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 4 |
| Toolholder Style | R335.18 |
| Series | R335.18 |
| Insert Style | LNK.. 08.. |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 10500 |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Radius | No |
| Complete Insert Compatibility1 | LNKT 080504PPN-E05; LNKT 080504PPTN-M06; LNKT 080508PPN-E05; LNKT 080508PPTN-M06; LNKT 080516PPN-E05; LNKT 080516PPTN-M06; LNKT 080520PPN-E05; LNKT 080520PPTN-M06; LNKT 080524PPN-E05; LNKT 080524PPTN-M06; LNKT 080531PPN-E05; LNKT 080531PPTN-M06; LNKT 0805 |
