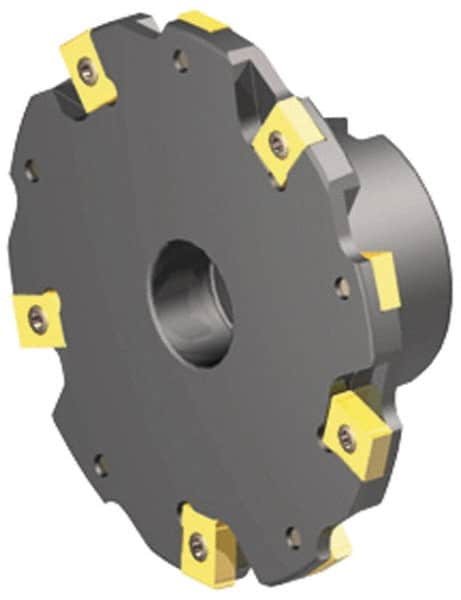

Kennametal - Shell Mount Connection, 1/4" Cutting Width, 0.942" Depth of Cut, 4" Cutter Diam, 1" Hole Diam, 10 Tooth Indexable Slotting Cutter - 90° LN Toolholder, LNE 1240... Insert
Item #: 79220588
Brand: Kennametal
Model #: 1025861
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.2500 |
| Cutting Width (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.9420 |
| Cutter Diameter (Decimal Inch) | 4.0000 |
| Cutter Diameter (Inch) | 4 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 10 |
| Toolholder Style | 90 LN |
| Series | LN |
| Insert Style | LNE 1240... |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Maximum RPM | 8200 |
| Minimum Cutting Width (Decimal Inch) | 0.2500 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Radius | No |
| Rake | Neutral; Positive |
| Cutter Body Width (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility2 | LNEQ 1235R03; LNEQ 1240; LNEQ 1245R04; LNEQ 1250R04; LNEQ 1260R04; LNEU 1240R08; LNEU 1240R16; LNEU 1245R08; LNEU 1245R16; LNEU 1245R32; LNEU 1250R08; LNEU 1255R04; LNEU 1255R32 |
| Complete Insert Compatibility1 | LNEQ 1240R03; LNEQ 1255; LNEQ 1255R04; LNEU 1235R03; LNEU 1240R03; LNEU 1250R04; LNEU 1255R08; LNEU 1255R16; LNEU 1260R |
