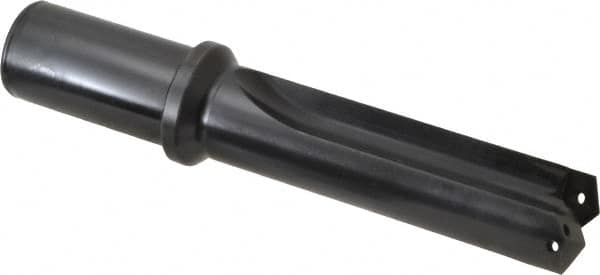

Allied Machine and Engineering - Series 2.5, 1-3/16 to 1-3/8" Diam, 1-1/4" Diam Straight Shank with Flange, Straight Flute Spade Drill - 3-3/8" Max Depth, 5-13/64" Body Length, 7-11/32" OAL, Short Length, Through Coolant
Item #: 79230496
Brand: Allied Machine and Engineering
Model #: 22025S-125F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 2.5 |
| Minimum Drill Diameter (Inch) | 1-3/16 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 7-11/32 |
| Maximum Drill Depth (Inch) | 3-3/8 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 5-1/16 |
| Body Length (Inch) | 5-13/64 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
