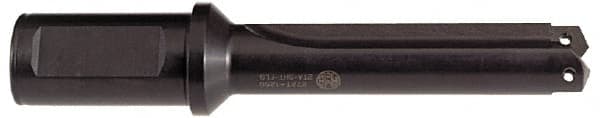

Allied Machine and Engineering - Series 2, 31/32 to 1-3/8" Diam, 1-1/4" Diam Straight Shank with Flange, Straight Flute Spade Drill - 11-3/8" Max Depth, 13-13/64" Body Length, 15-11/32" OAL, Extended Length, Through Coolant
Item #: 79231163
Brand: Allied Machine and Engineering
Model #: 25020S-125F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 2 |
| Minimum Drill Diameter (Inch) | 31/32 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 15-11/32 |
| Maximum Drill Depth (Inch) | 11-3/8 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 13-1/16 |
| Body Length (Inch) | 13-13/64 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
