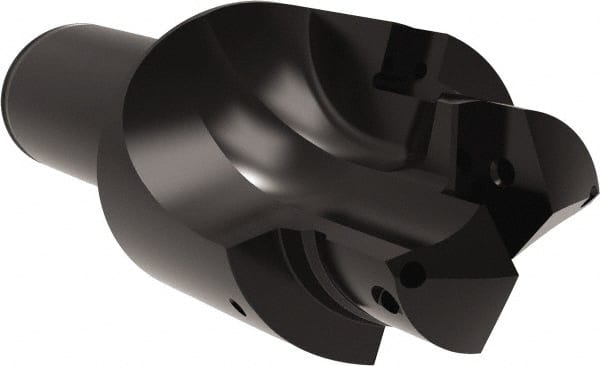

Allied Machine and Engineering - ISO 11926-1, MS 16142, SAE J1926-1 Standard, 1-7/8-12, 24 Tube Dash Number, 15° Porting Angle, 1.791" Pilot Diam, 1-1/2" Shank Diam, Indexable Spade Blade Insert Porting Tool - 2 Porting Inserts, 6" Overall Length
Item #: 79359741
Brand: Allied Machine and Engineering
Model #: X1926-243-150F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Port Standard Designation | ISO 11926-1; MS 16142; SAE J1926-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 1-7/8-12 |
| Tube Dash Number | 24 |
| Pilot Diameter (Decimal Inch) | 1.7910 |
| Spotface Diameter (Decimal Inch) | 2.5590 |
| Pilot Length (Decimal Inch) | 1.1560 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Porting Inserts | 2 |
| Porting Diameter (Decimal Inch) | 1.9650 |
| Overall Length (Decimal Inch) | 6.0000 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1380 |
| Head Length (Decimal Inch) | 3.3120 |
| Shank Length (Decimal Inch) | 2.6880 |
| Spotface to Shoulder Length (Decimal Inch) | 1.7780 |
| Series | AccuPort 432 |
