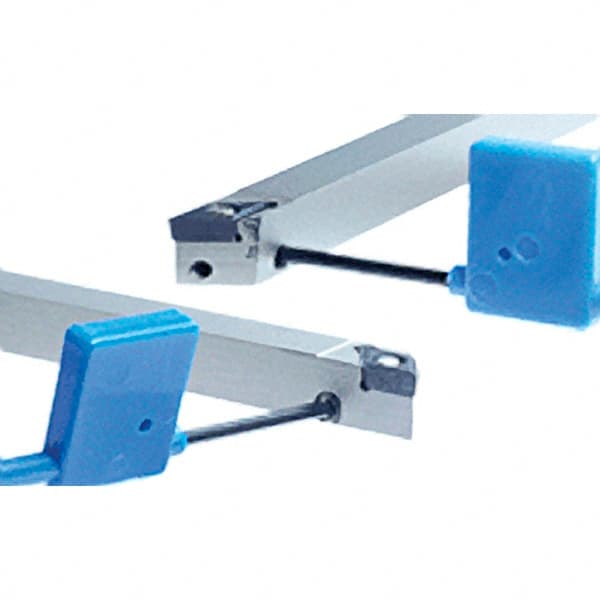

Iscar - PDAC, Left Hand Cut, 90° Lead Angle, 8mm Shank Height x 8mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, DC..070.. Insert Compatibility, Series Isoturn
Item #: 79402285
Brand: Iscar
Model #: 3602407
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PDAC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Isoturn |
| Lead Angle | 90 |
| Shank Width (mm) | 8.00 |
| Shank Width (Decimal Inch) | 0.3150 |
| Shank Height (mm) | 8.00 |
| Shank Height (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DC..070.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 8.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3150 |
