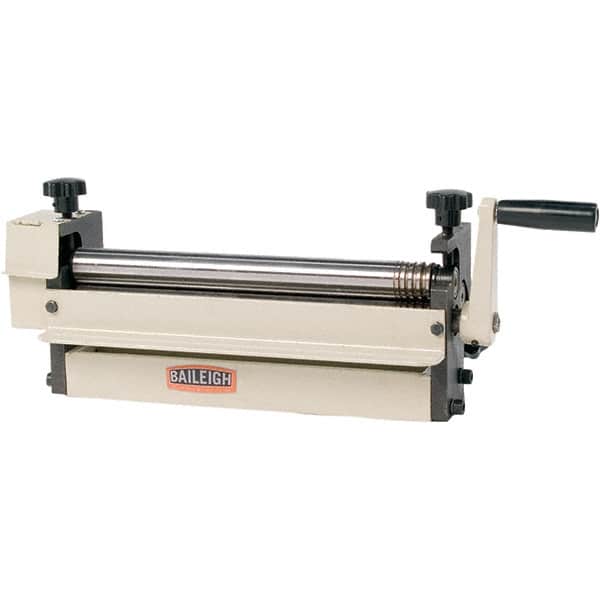

Baileigh - Slip Rolls Machine Type: Bench Power Type: Manual
Item #: 79420139
Brand: Baileigh
Model #: 1007290
Exact Tooling IR#: 04
Product Specifications
Slip Rolls; Machine Type: Bench ; Power Type: Manual ; Maximum Forming Width (mm): 305.00 ; Maximum Forming Width (Inch): 12 ; Maximum Mild Steel Capacity (mm): 1.00 ; Maximum Mild Steel Capacity (Decimal Inch): 0.0360
| Machine Type | Bench |
| Power Type | Manual |
| Maximum Forming Width (mm) | 305.00 |
| Maximum Forming Width (Inch) | 12 |
| Maximum Mild Steel Capacity (mm) | 1.00 |
| Maximum Mild Steel Capacity (Decimal Inch) | 0.0360 |
| Maximum Mild Steel Capacity (Gauge) | 20 |
| Slip Roll Diameter (mm) | 32.00 |
| Slip Roll Diameter (Inch) | 1-1/4 |
| Number of Wire Grooves | 4 |
| Overall Width (mm) | 482.00 |
| Overall Width (Inch) | 19 |
| Overall Height (mm) | 190 |
| Overall Height (Inch) | 7-1/2 |
