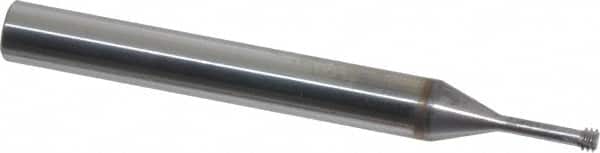

Vargus - M16x0.50, M3.5x0.50, M3x0.50 Thread, Bright Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2.24" OAL, M3 Min Noml Diamter
Item #: 79486858
Brand: Vargus
Model #: 80266
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Pitch (mm) | 0.50 |
| Thread Size (mm) | M16x0.50; M3.5x0.50; M3x0.50 |
| Minimum Nominal Diameter (mm) | M3 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 2.4000 |
| Finish/Coating | Bright |
| Length of Cut (Decimal Inch) | 0.3600 |
| Thread Standard | Metric Coarse; Metric Fine |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.2400 |
| Through Coolant | No |
