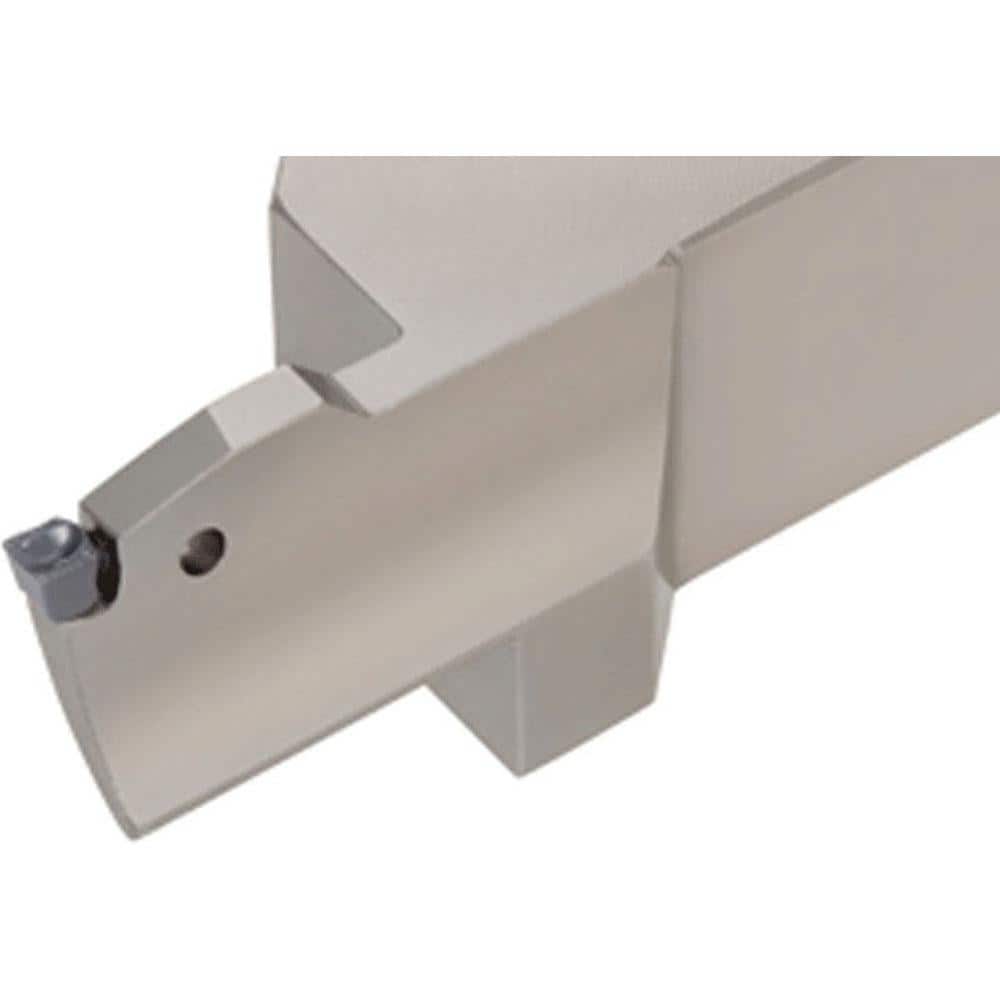

Indexable Grooving Toolholder: ETFR2525-4T25-200500, Uses 4 Inserts, No
Item #: 79521910
Brand: Tungaloy
Model #: 6991221
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 4 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | ETF |
| Insert Holding Method | Wedge |
| Compatible Insert Size Code | 4 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | ETF |
| Overall Length (mm) | 150.00 |
| Cutting Tool Application | Grooving; Facing |
| Maximum Workpiece Diameter (mm) | 500.00 |
| Back of Bar to Cutting Edge (mm) | 25.50 |
| Minimum Hole Diameter (mm) | 200.00 |
| Minimum Hole Diameter (Decimal Inch) | 200.0000 |
| Head Height (Decimal Inch) | 25.0000 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 150.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
