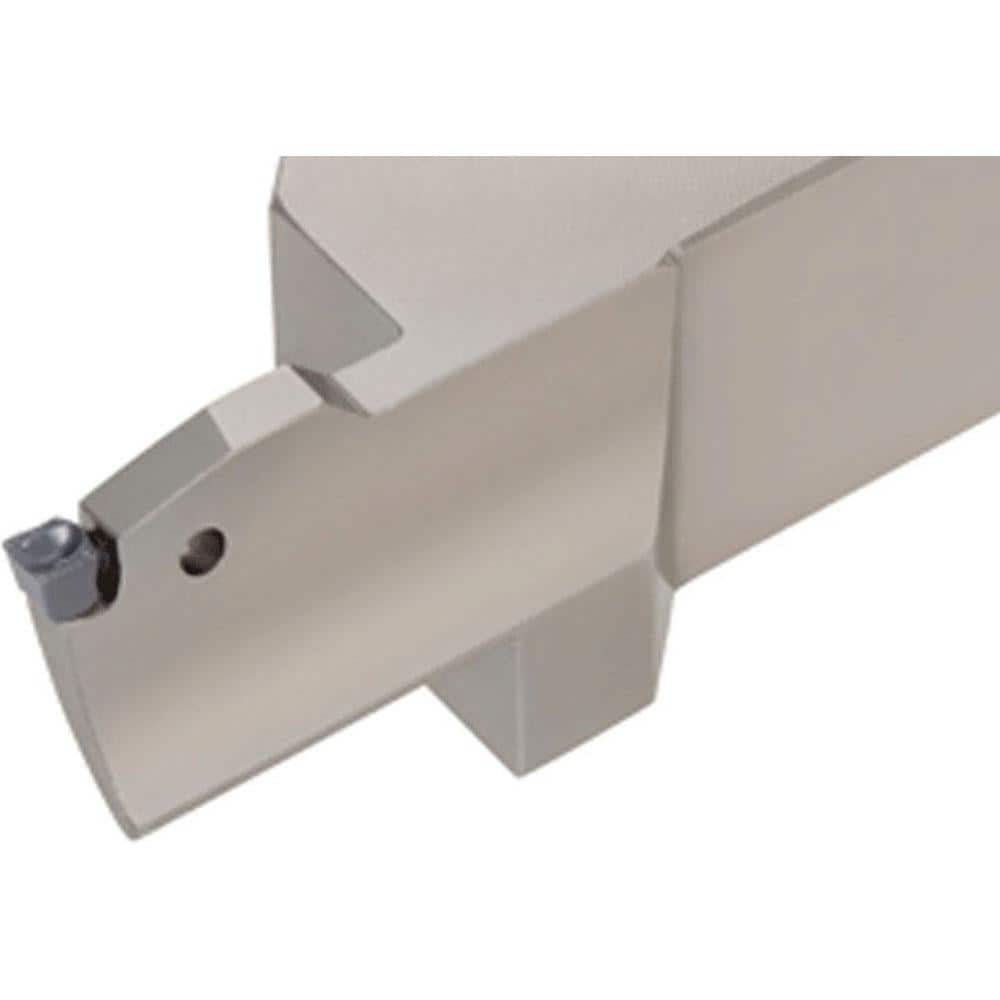

Indexable Grooving Toolholder: ETFL2525-4T25-055075, Uses 4 Inserts, No
Item #: 79521936
Brand: Tungaloy
Model #: 6991213
Product Specifications
| Toolholder Type | Face Grooving |
| Insert Seat Size | 4 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (mm) | 4.00 |
| Toolholder Style | ETF |
| Insert Holding Method | Wedge |
| Compatible Insert Size Code | 4 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | ETF |
| Overall Length (mm) | 150.00 |
| Cutting Tool Application | Grooving; Facing |
| Maximum Workpiece Diameter (mm) | 75.00 |
| Back of Bar to Cutting Edge (mm) | 25.50 |
| Minimum Hole Diameter (mm) | 55.00 |
| Minimum Hole Diameter (Decimal Inch) | 55.0000 |
| Head Height (Decimal Inch) | 25.0000 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 150.00 |
| Primary Workpiece Material | Universal |
| Toolholder Material | Steel |
| Coolant Through | No |
