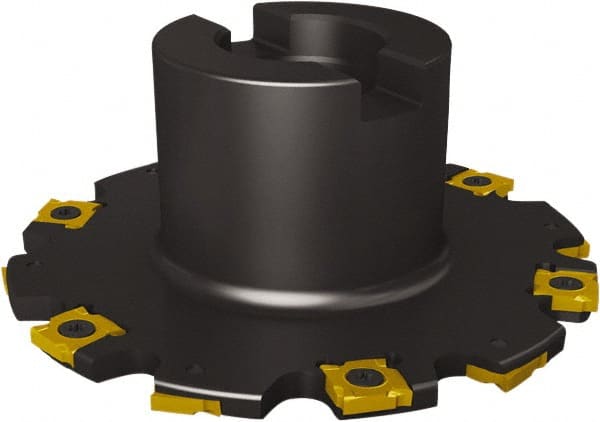

Seco - Shell Mount Connection, 0.1969" Cutting Width, 0.8701" Depth of Cut, 100mm Cutter Diam, 1-1/16" Hole Diam, 6 Tooth Indexable Slotting Cutter - R335.19 Toolholder, SNHQ 1103 Insert, Right Hand Cutting Direction
Item #: 79561320
Brand: Seco
Model #: 11453
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 22.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.8701 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 6 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | SNHQ 1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 11800 |
| Minimum Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Cutting Width (mm) | 5.00 |
| Hub Diameter (mm) | 48.00 |
| Hub Diameter (Decimal Inch) | 1.8898 |
| Radius | No |
| Rake | Negative |
| Complete Insert Compatibility1 | SNHQ 110302EL4-E05; SNHQ 110302ER4-E05; SNHQ 110302TL4-M07; SNHQ 110302TR4-M07; SNHQ 110304TL4-M07; SNHQ 110304TR4-M07; SNHQ 110308TL4-M07; SNHQ 110308TR4-M07; SNHQ 110312TL4-M07; SNHQ 110312TR4-M07; SNHQ 110316TL4-M07; SNHQ 110316TR4-M07; SNHQ 110320TL4- |
