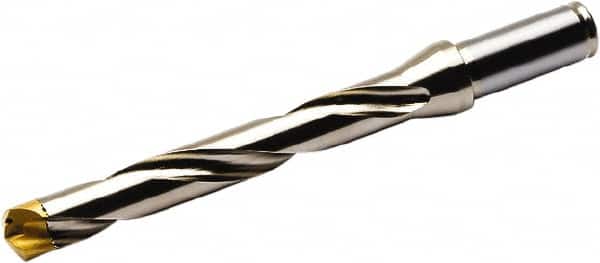

Seco - 13 to 13.99mm Diam, 7xD, 90mm Max Depth, 16mm Shank Diam, 101.5mm Flute, 167.5mm OAL, Replaceable Tip Drill - SD107 Toolholder, Series Crownloc
Item #: 79587812
Brand: Seco
Model #: 05090
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | Crownloc |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.5508 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (Decimal Inch) | 3.5433 |
| Maximum Drill Depth (mm) | 90.00 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | SD107 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (mm) | 101.50 |
| Flute Length (Decimal Inch) | 3.9961 |
| Body Length (mm) | 119.50 |
| Body Length (Decimal Inch) | 4.7047 |
| Toolholder Coating | TiAlN |
| Overall Length (mm) | 167.50 |
| Overall Length (Decimal Inch) | 6.5945 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
