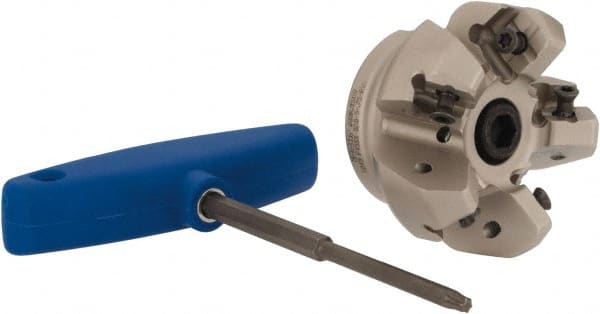

Iscar - 2" Cut Diam, 3/4" Arbor Hole, 0.276" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, S845 SX.U 16.. Insert, Right Hand Cut, 5 Flutes, Through Coolant, Series Helido
Item #: 79634721
Brand: Iscar
Model #: 3105060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | S845 SX.U 16.. |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | S845 F45SX-16 |
| Number of Flutes | 5 |
| Maximum Body Diameter (Decimal Inch) | 2.5500 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.2760 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | S845 SXHU 1606-W; S845 SXMU/SXCU-16 |
