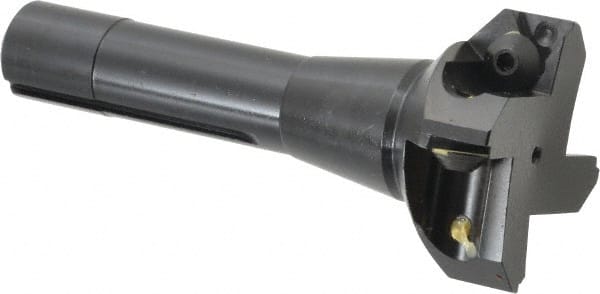

Value Collection - 2-1/2" Cut Diam, 0.656" Max Depth of Cut, 5-37/64" OAL, Indexable Square Shoulder End Mill - TPC 32..., TPG 32., TPU 32. Inserts, R8
Item #: 79697538
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Cutting Diameter (Inch) | 2-1/2 |
| Shank Type | R8 |
| Shank Taper Size | R8 |
| Overall Length/Projection (Inch) | 5-37/64 |
| Overall Length/Projection (Decimal Inch) | 5.5781 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.6560 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | TPG |
| Number of Flutes | 4 |
| Head Length (Inch) | 1-33/64 |
| Head Length (Decimal Inch) | 1.5156 |
| Insert Compatibility | TPC 32..., TPG 32., TPU 32. |
