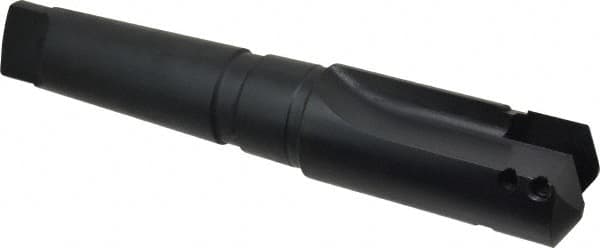

Allied Machine and Engineering - Series D, 2 to 2-7/8" Diam, 5MT Taper Shank, Straight Flute Spade Drill - 4-1/2" Max Depth, 5-3/4" Body Length, 10-5/8" OAL, Short Length
Item #: 79729414
Brand: Allied Machine and Engineering
Model #: 21441-0005
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | D |
| Minimum Drill Diameter (Inch) | 2 |
| Maximum Drill Diameter (Inch) | 2-7/8 |
| Shank Type | Taper Shank |
| Shank Taper Size | 5MT |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 10-5/8 |
| Maximum Drill Depth (Inch) | 4-1/2 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 4-1/2 |
| Body Length (Inch) | 5-3/4 |
| Shank Length (Inch) | 6-1/8 |
| Through Coolant | No |
