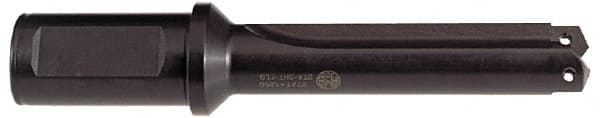

Allied Machine and Engineering - Series 1.5, 22 to 24mm Diam, 25mm Diam Straight Shank with Flange, Straight Flute Spade Drill - 66.7mm Max Depth, 110.7mm Body Length, 160.2mm OAL, Short Length, Through Coolant
Item #: 79729729
Brand: Allied Machine and Engineering
Model #: 22015S-25FM
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 1.5 |
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 24.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Spade Drill Length | Short Length |
| Overall Length (mm) | 160.20 |
| Maximum Drill Depth (mm) | 66.70 |
| Flute Type | Straight Flute |
| Flute Length (mm) | 107.20 |
| Body Length (mm) | 110.70 |
| Shank Length (mm) | 53.10 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
