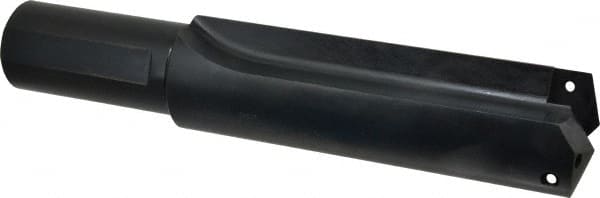

Allied Machine and Engineering - Series 5, 2-1/2 to 3-1/2" Diam, 2" Diam Straight Shank, Straight Flute Spade Drill - 6-3/4" Max Depth, 8-3/4" Body Length, 12-1/2" OAL, Short Length, Through Coolant
Item #: 79729919
Brand: Allied Machine and Engineering
Model #: 22050S-200L
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 5 |
| Minimum Drill Diameter (Inch) | 2-1/2 |
| Maximum Drill Diameter (Inch) | 3-1/2 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 2 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 12-1/2 |
| Maximum Drill Depth (Inch) | 6-3/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 8-1/2 |
| Body Length (Inch) | 8-3/4 |
| Shank Length (Inch) | 4 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/2 |
