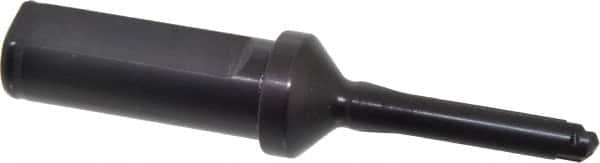

Allied Machine and Engineering - Series Y, 3/8 to 27/64" Diam, 3/4" Diam Straight Shank with Flange, Straight Flute Spade Drill - 1-1/4" Max Depth, 2-1/2" Body Length, 4-7/16" OAL, Short Length, Through Coolant
Item #: 79730016
Brand: Allied Machine and Engineering
Model #: 220Y0S-075F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | Y |
| Minimum Drill Diameter (Inch) | 3/8 |
| Maximum Drill Diameter (Inch) | 27/64 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Short Length |
| Overall Length (Inch) | 4-7/16 |
| Maximum Drill Depth (Inch) | 1-1/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 2-13/32 |
| Body Length (Inch) | 2-1/2 |
| Shank Length (Inch) | 2-1/32 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
