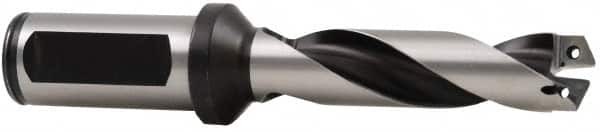

Allied Machine and Engineering - Series 1, 18 to 24mm Diam, 25mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 117.5mm Max Depth, 158.4mm Body Length, 207.9mm OAL, Intermediate Length, Through Coolant
Item #: 79730412
Brand: Allied Machine and Engineering
Model #: 23010H-25FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 1 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 24.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Spade Drill Length | Intermediate Length |
| Overall Length (mm) | 207.90 |
| Maximum Drill Depth (mm) | 117.50 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 154.80 |
| Body Length (mm) | 158.40 |
| Shank Length (mm) | 53.10 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
