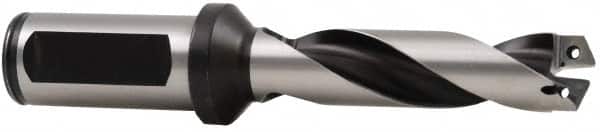

Allied Machine and Engineering - Series 2.5, 30 to 35mm Diam, 32mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 136.5mm Max Depth, 183mm Body Length, 237.3mm OAL, Intermediate Length, Through Coolant
Item #: 79730560
Brand: Allied Machine and Engineering
Model #: 23025H-32FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 2.5 |
| Minimum Drill Diameter (mm) | 30.00 |
| Maximum Drill Diameter (mm) | 35.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 32.00 |
| Spade Drill Length | Intermediate Length |
| Overall Length (mm) | 237.30 |
| Maximum Drill Depth (mm) | 136.50 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 179.40 |
| Body Length (mm) | 183.00 |
| Shank Length (mm) | 57.90 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
