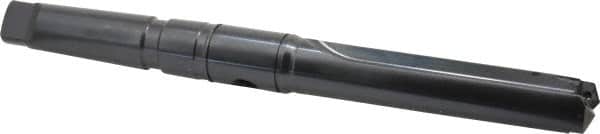

Allied Machine and Engineering - Series 2.5, 1-3/16 to 1-3/8" Diam, 4MT Taper Shank, Straight Flute Spade Drill - 5-3/8" Max Depth, 8-37/64" Body Length, 13-1/16" OAL, Intermediate Length, Through Coolant
Item #: 79730578
Brand: Allied Machine and Engineering
Model #: 23025S-004I
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 2.5 |
| Minimum Drill Diameter (Inch) | 1-3/16 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Shank Type | Taper Shank |
| Shank Taper Size | 4MT |
| Spade Drill Length | Intermediate Length |
| Overall Length (Inch) | 13-1/16 |
| Maximum Drill Depth (Inch) | 5-3/8 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 6-1/2 |
| Body Length (Inch) | 8-37/64 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-4SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/4 |
