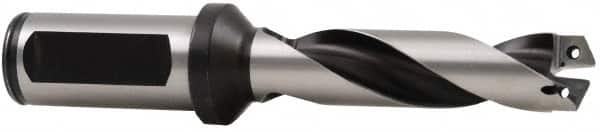

Allied Machine and Engineering - Series 3, 36 to 47mm Diam, 40mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 165.1mm Max Depth, 222.3mm Body Length, 287.6mm OAL, Intermediate Length, Through Coolant
Item #: 79730610
Brand: Allied Machine and Engineering
Model #: 23030H-40FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 3 |
| Minimum Drill Diameter (mm) | 36.00 |
| Maximum Drill Diameter (mm) | 47.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 40.00 |
| Spade Drill Length | Intermediate Length |
| Overall Length (mm) | 287.60 |
| Maximum Drill Depth (mm) | 165.10 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 217.50 |
| Body Length (mm) | 222.30 |
| Shank Length (mm) | 70.10 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
