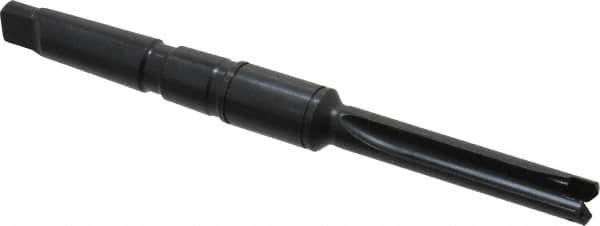

Allied Machine and Engineering - Series 0, 33/64 to 11/16" Diam, 2MT Taper Shank, Straight Flute Spade Drill - 2-1/2" Max Depth, 4-49/64" Body Length, 7-19/32" OAL, Standard Length, Through Coolant
Item #: 79730685
Brand: Allied Machine and Engineering
Model #: 24000S-002I
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 0 |
| Minimum Drill Diameter (Inch) | 33/64 |
| Maximum Drill Diameter (Inch) | 11/16 |
| Shank Type | Taper Shank |
| Shank Taper Size | 2MT |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 7-19/32 |
| Maximum Drill Depth (Inch) | 2-1/2 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 3-5/16 |
| Body Length (Inch) | 4-49/64 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-2SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16 |
