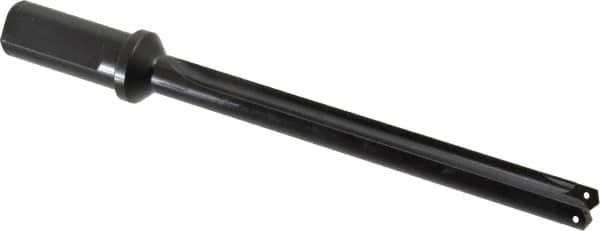

Allied Machine and Engineering - Series 1, 45/64 to 15/16" Diam, 1" Diam Straight Shank with Flange, Straight Flute Spade Drill - 6-5/8" Max Depth, 8-15/64" Body Length, 10-3/8" OAL, Standard Length, Through Coolant
Item #: 79730818
Brand: Allied Machine and Engineering
Model #: 24010S-100F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 1 |
| Minimum Drill Diameter (Inch) | 45/64 |
| Maximum Drill Diameter (Inch) | 15/16 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 10-3/8 |
| Maximum Drill Depth (Inch) | 6-5/8 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 8-3/32 |
| Body Length (Inch) | 8-15/64 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
