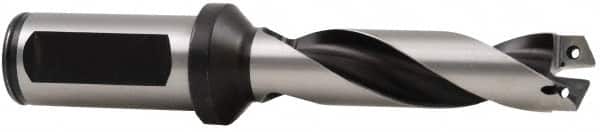

Allied Machine and Engineering - Series 1.5, 22 to 24mm Diam, 25mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 168.3mm Max Depth, 209.2mm Body Length, 258.7mm OAL, Standard Length, Through Coolant
Item #: 79730842
Brand: Allied Machine and Engineering
Model #: 24015H-25FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 1.5 |
| Minimum Drill Diameter (mm) | 22.00 |
| Maximum Drill Diameter (mm) | 24.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 25.00 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 258.70 |
| Maximum Drill Depth (mm) | 168.30 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 205.60 |
| Body Length (mm) | 209.20 |
| Shank Length (mm) | 53.10 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
