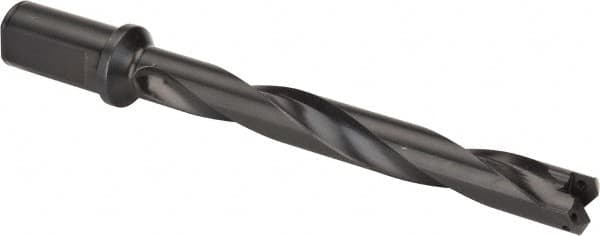

Allied Machine and Engineering - Series 2, 31/32 to 1-3/8" Diam, 1-1/4" Diam Straight Shank with Flange, Helical Flute Spade Drill - 7-3/8" Max Depth, 9-13/64" Body Length, 11-11/32" OAL, Standard Length, Through Coolant
Item #: 79730891
Brand: Allied Machine and Engineering
Model #: 24020H-125F
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 2 |
| Minimum Drill Diameter (Inch) | 31/32 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/4 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 11-11/32 |
| Maximum Drill Depth (Inch) | 7-3/8 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 9-1/16 |
| Body Length (Inch) | 9-13/64 |
| Shank Length (Inch) | 2-9/32 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
