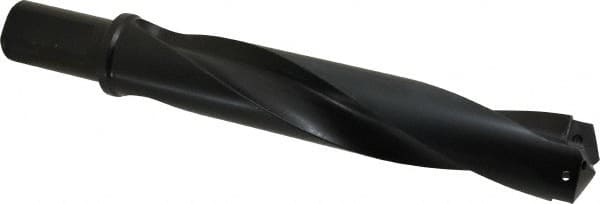

Allied Machine and Engineering - Series 4, 1-29/32 to 2-9/16" Diam, 1-1/2" Diam Straight Shank with Flange, Helical Flute Spade Drill - 9-1/8" Max Depth, 11-1/4" Body Length, 13-3/4" OAL, Standard Length, Through Coolant
Item #: 79731055
Brand: Allied Machine and Engineering
Model #: 24040H-150F
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 4 |
| Minimum Drill Diameter (Inch) | 1-29/32 |
| Maximum Drill Diameter (Inch) | 2-9/16 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1-1/2 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 13-3/4 |
| Maximum Drill Depth (Inch) | 9-1/8 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 11-1/16 |
| Body Length (Inch) | 11-1/4 |
| Shank Length (Inch) | 2-11/16 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
