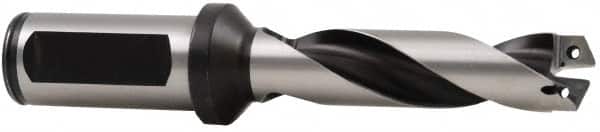

Allied Machine and Engineering - Series 4, 48 to 65mm Diam, 40mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 231.8mm Max Depth, 285.8mm Body Length, 351.1mm OAL, Standard Length, Through Coolant
Item #: 79731063
Brand: Allied Machine and Engineering
Model #: 24040H-40FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 4 |
| Minimum Drill Diameter (mm) | 48.00 |
| Maximum Drill Diameter (mm) | 65.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 40.00 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 351.10 |
| Maximum Drill Depth (mm) | 231.80 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 281.00 |
| Body Length (mm) | 285.80 |
| Shank Length (mm) | 70.10 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/4 |
