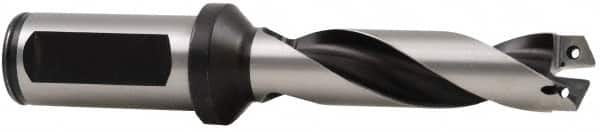

Allied Machine and Engineering - Series Y, 9.5 to 11mm Diam, 20mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 60.3mm Max Depth, 92.1mm Body Length, 131.6mm OAL, Long Length, Through Coolant
Item #: 79731162
Brand: Allied Machine and Engineering
Model #: 240Y0H-20FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | Y |
| Minimum Drill Diameter (mm) | 9.50 |
| Maximum Drill Diameter (mm) | 11.00 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Spade Drill Length | Long Length |
| Overall Length (mm) | 131.60 |
| Maximum Drill Depth (mm) | 60.30 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 89.70 |
| Body Length (mm) | 92.10 |
| Shank Length (mm) | 41.90 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
