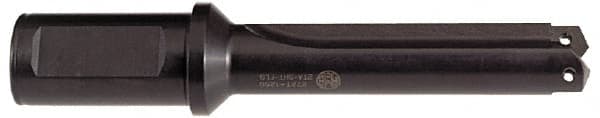

Allied Machine and Engineering - Series Y, 3/8 to 27/64" Diam, 3/4" Diam Straight Shank with Flange, Straight Flute Spade Drill - 2-3/8" Max Depth, 3-5/8" Body Length, 5-9/16" OAL, Standard Length, Through Coolant
Item #: 79731188
Brand: Allied Machine and Engineering
Model #: 240Y0S-075F
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | Y |
| Minimum Drill Diameter (Inch) | 3/8 |
| Maximum Drill Diameter (Inch) | 27/64 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 5-9/16 |
| Maximum Drill Depth (Inch) | 2-3/8 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 3-17/32 |
| Body Length (Inch) | 3-5/8 |
| Shank Length (Inch) | 2-1/32 |
| Through Coolant | Yes |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
