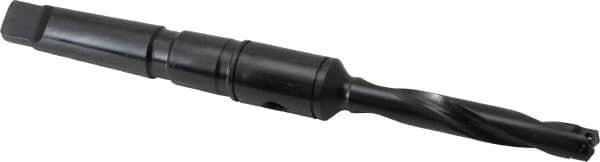

Allied Machine and Engineering - Series Z, 7/16 to 1/2" Diam, 2MT Taper Shank, Helical Flute Spade Drill - 2-3/8" Max Depth, 4-19/32" Body Length, 7-7/16" OAL, Standard Length, Through Coolant
Item #: 79731196
Brand: Allied Machine and Engineering
Model #: 240Z0H-002I
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | Z |
| Minimum Drill Diameter (Inch) | 7/16 |
| Maximum Drill Diameter (Inch) | 1/2 |
| Shank Type | Taper Shank |
| Shank Taper Size | 2MT |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 7-7/16 |
| Maximum Drill Depth (Inch) | 2-3/8 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 3-5/32 |
| Body Length (Inch) | 4-19/32 |
| Through Coolant | Yes |
| Rotary Coolant Adapter Compatibility | 2T-2SR |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16 |
