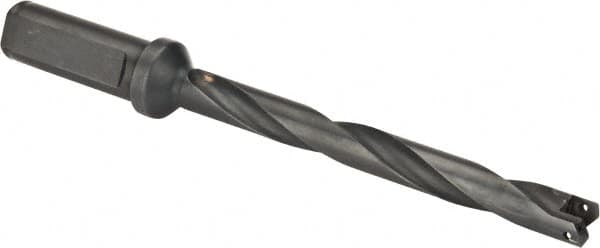

Allied Machine and Engineering - Series 0, 33/64 to 11/16" Diam, 3/4" Diam Straight Shank with Flange, Helical Flute Spade Drill - 4-1/2" Max Depth, 5-47/64" Body Length, 7-21/32" OAL, Extended Length, Through Coolant
Item #: 79731386
Brand: Allied Machine and Engineering
Model #: 25000H-075F
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 0 |
| Minimum Drill Diameter (Inch) | 33/64 |
| Maximum Drill Diameter (Inch) | 11/16 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 3/4 |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 7-21/32 |
| Maximum Drill Depth (Inch) | 4-1/2 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 5-5/8 |
| Body Length (Inch) | 5-47/64 |
| Shank Length (Inch) | 2-1/32 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
