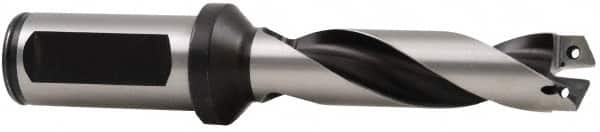

Allied Machine and Engineering - Series 0, 13 to 17.5mm Diam, 20mm Diam Straight Shank with Flange, Helical Flute Spade Drill - 114.3mm Max Depth, 145.7mm Body Length, 184.8mm OAL, Extended Length, Through Coolant
Item #: 79731394
Brand: Allied Machine and Engineering
Model #: 25000H-20FM
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 0 |
| Minimum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (mm) | 17.50 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (mm) | 20.00 |
| Spade Drill Length | Extended Length |
| Overall Length (mm) | 184.80 |
| Maximum Drill Depth (mm) | 114.30 |
| Flute Type | Helical Flute |
| Flute Length (mm) | 142.90 |
| Body Length (mm) | 145.70 |
| Shank Length (mm) | 41.90 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | BSP |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
