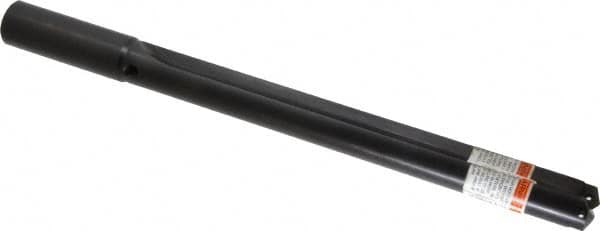

Allied Machine and Engineering - Series 2.5, 1-3/16 to 1-3/8" Diam, 1-1/4" Diam Straight Shank, Straight Flute Spade Drill - 11-3/8" Max Depth, 12-41/64" Body Length, 16" OAL, Extended Length, Through Coolant
Item #: 79731774
Brand: Allied Machine and Engineering
Model #: 25025S-125L
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 2.5 |
| Minimum Drill Diameter (Inch) | 1-3/16 |
| Maximum Drill Diameter (Inch) | 1-3/8 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 16 |
| Maximum Drill Depth (Inch) | 11-3/8 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 12-1/2 |
| Body Length (Inch) | 12-41/64 |
| Shank Length (Inch) | 3-1/2 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
