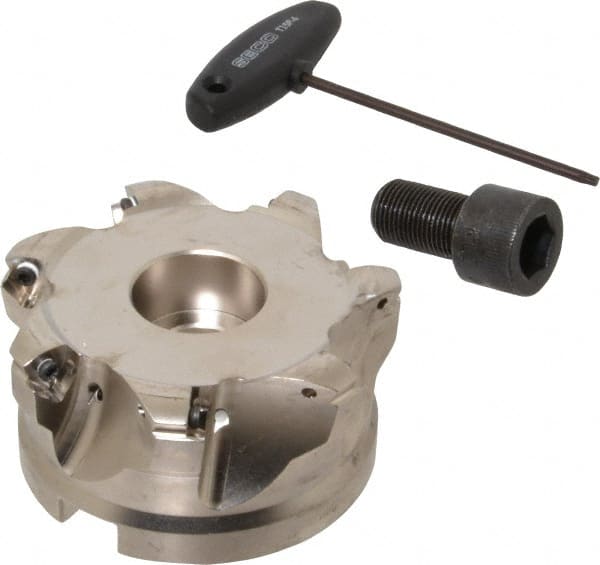

Seco - 7 Inserts, 3.22" Cutter Diam, 0.1" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/2" Arbor Hole Diam, 0.63" Keyway Width, 2" High, R220.21 Toolholder, 218.19-160.. Inserts, Series R220.21
Item #: 79732483
Brand: Seco
Model #: 04975
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.2200 |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | R220.21 |
| Cutter Style | R220.21 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | 218.19-160.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 9100 |
| Number of Flutes | 7 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Through Coolant | No |
| Keyway Width (Decimal Inch) | 0.6300 |
