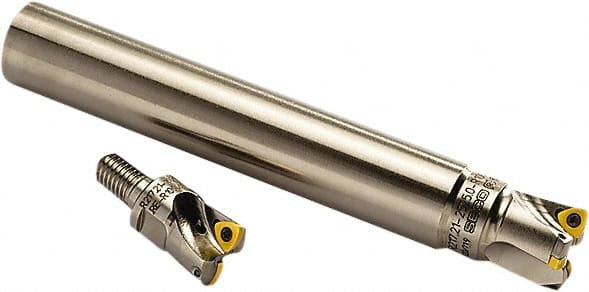

Seco - 1-1/4" Cut Diam, 0.04" Max Depth, M16 Modular Connection Indexable High-Feed End Mill - Screw Holding Method, 218.19-125 Insert, R217.21 Toolholder, Through Coolant
Item #: 79732798
Brand: Seco
Model #: 07334
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0400 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | 218.19-125 |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | End Mill |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 0.8300 |
| Maximum RPM | 19700 |
| Through Coolant | Through Coolant |
| Projection (Decimal Inch) | 1.6000 |
