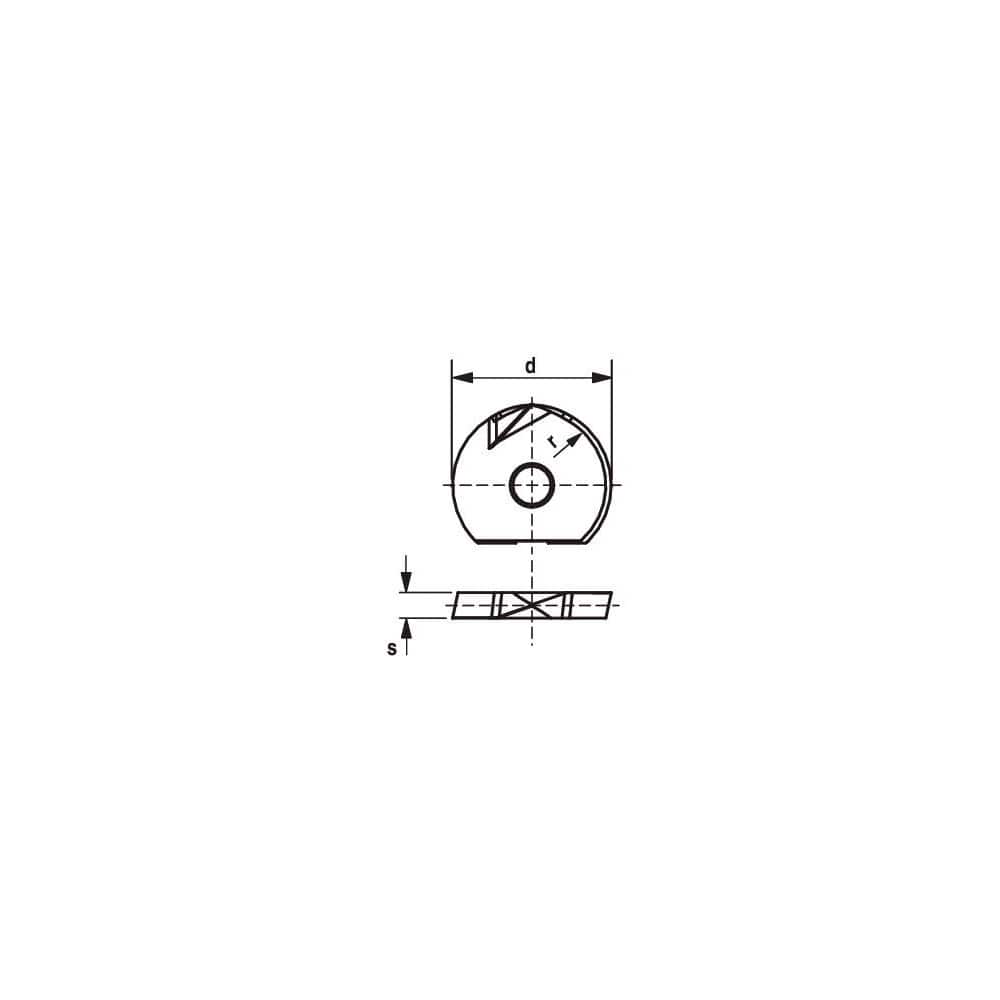

Milling Insert: ROHX 1025R5-FM6 CTCN211, CTCN211, Solid Carbide N/A Finish,
Item #: 79750329
Brand: Ceratizit
Model #: 56145624
Product Specifications
| Insert Style | ROHX |
| Insert Size Code | 1025 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCN211 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Insert Hand | Neutral |
| Series | ROHX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1968 |
| Insert Shape | Ball Nose |
| Rake | Negative |
| Primary Workpiece Material | Non-ISO |
| Primary Workpiece Material Code | O |
| Secondary Workpiece Material | Non-Ferrous Metal |
| Secondary Workpiece Material Code | N |
| Iso Code | ROHX 1025R5-FM6 CTCN211 |
| Chip Breaker | FM6 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0984 |
