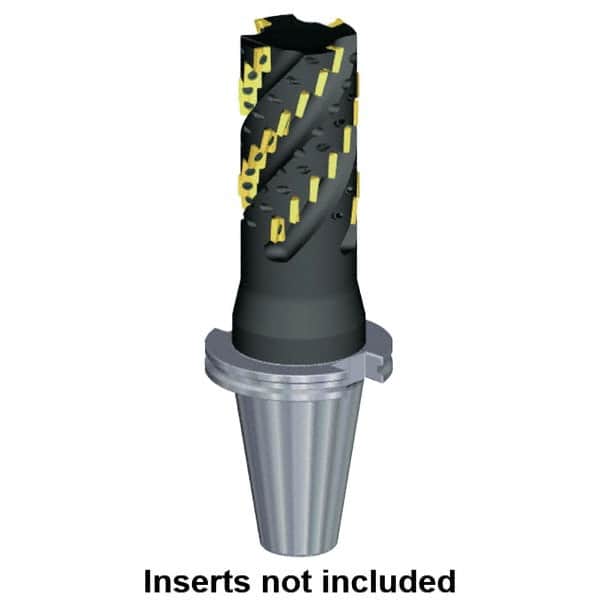

Kennametal - 2" Cut Diam, 155.45mm Max Depth of Cut, 12" OAL, Indexable Square Shoulder Helical End Mill - ADKT 2.32.. Inserts, CAT 50 Taper Shank
Item #: 79767034
Brand: Kennametal
Model #: 1515478
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.80 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Taper Shank |
| Shank Taper Size | CAT 50 |
| Overall Length/Projection (mm) | 304.80 |
| Overall Length/Projection (Inch) | 12 |
| Overall Length/Projection (Decimal Inch) | 12.0000 |
| Maximum Depth of Cut (mm) | 155.45 |
| Maximum Depth of Cut (Decimal Inch) | 6.1200 |
| Number of Cutter Inserts | 50 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 4 |
| Insert Compatibility | ADKT 2.32.. |
| Shank Length (Decimal Inch) | 4.1250 |
| Shank Length (mm) | 104.78 |
