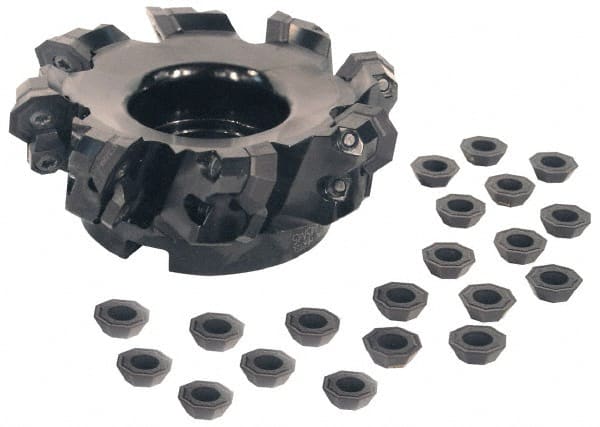

Kennametal - 6" Cut Diam, 2" Arbor Hole, 5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 12 Inserts, OF.T 07L6... Insert, Right Hand Cut, 12 Flutes, Through Coolant, Series KSOM
Item #: 79792644
Brand: Kennametal
Model #: 3093644
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (mm) | 152.40 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Inch) | 2 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 2.3800 |
| Overall Height (mm) | 60.45 |
| Insert Compatibility | OF.T 07L6... |
| Series | KSOM |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Number of Flutes | 12 |
| Hub Diameter (Decimal Inch) | 4.7220 |
| Hub Diameter (mm) | 119.95 |
| Keyway Width (Decimal Inch) | 0.7500 |
| Maximum Body Diameter (Decimal Inch) | 6.4310 |
| Maximum RPM | 3900 |
| Cutting Direction | Right Hand |
| Pitch | Fine |
