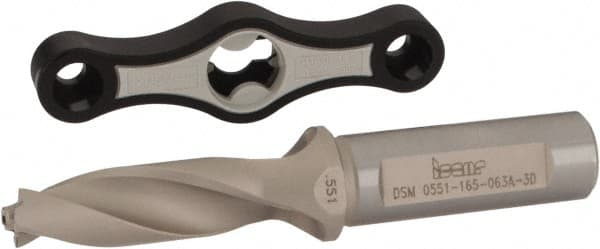

Iscar - 0.551 to 0.587" Diam, 3xD, 1.65" Max Depth, 5/8" Shank Diam, 4.27" OAL, Replaceable Tip Drill - IDK, IDM, IDN, IDP Insert, DSM Toolholder, Series ChamDrillJet
Item #: 79821955
Brand: Iscar
Model #: 3201040
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrillJet |
| Minimum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Diameter (Decimal Inch) | 0.5870 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.6500 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | IDK; IDM; IDN; IDP |
| Toolholder Style | DSM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 2.2900 |
| Overall Length (Decimal Inch) | 4.2700 |
| Shank Length (Decimal Inch) | 1.9800 |
