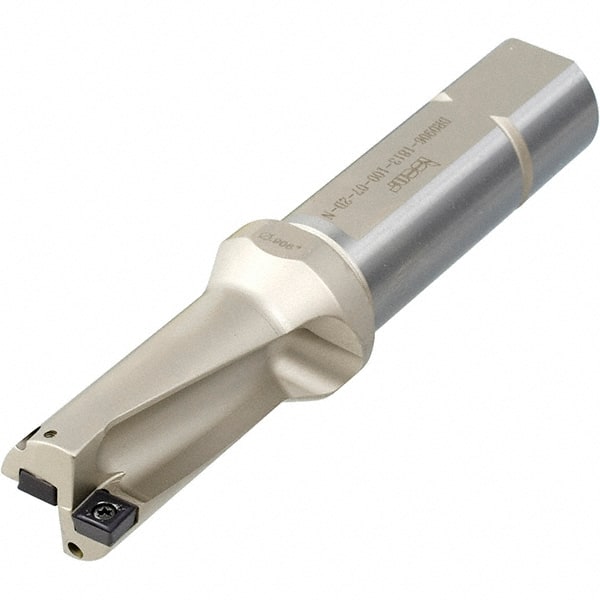

Iscar - 1.31" Max Drill Depth, 2xD, 21/32" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 79848099
Brand: Iscar
Model #: 3201312
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 21/32 |
| Drill Diameter (Decimal Inch) | 0.6560 |
| Maximum Drill Depth (Decimal Inch) | 1.3100 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7130 |
| Overall Length/Projection (Decimal Inch) | 5.1400 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (Decimal Inch) | 2.1400 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.1020 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
