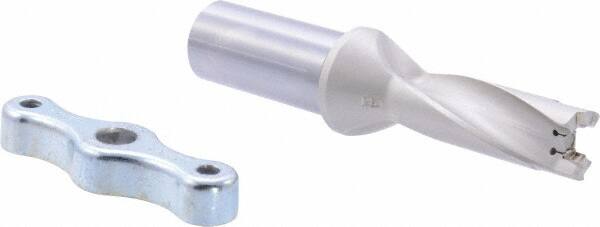

Iscar - 0.787 to 0.823" Diam, 3xD, 2.36" Max Depth, 1" Shank Diam, Replaceable Tip Drill - 20 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 79851010
Brand: Iscar
Model #: 3200593
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.7870 |
| Maximum Drill Diameter (Decimal Inch) | 0.8230 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.3600 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | 20 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 3.4200 |
| Shank Length (Decimal Inch) | 2.2000 |
