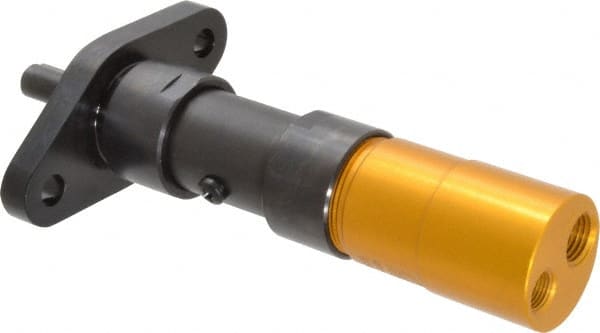

Ingersoll-Rand - 0.14 - 0.19 hp Single Direction Air Actuated Motor - 13:1 Gear Ratio, 880 Max RPM, 1" Shaft Length, 6.6" OAL, 3/8" Shaft Diam
Item #: 79932208
Brand: Ingersoll-Rand
Model #: M002RHR013AR3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Gear Ratio | 13:1 |
| Horsepower | 0.14 - 0.19 |
| Maximum RPM | 880 |
| Minimum RPM | 0.00 |
| Shaft Length (Decimal Inch) | 1.000 |
| Shaft Diameter (Inch) | 3/8 |
| Shaft Rotation | Single Direction |
| Shaft Type | Keyed |
| Maximum Working Pressure (psi) | 90 |
| Torque (In/Lb) | 1.82 |
| Overall Length (Decimal Inch) | 6.6000 |
| PSC Code | 6105 |
