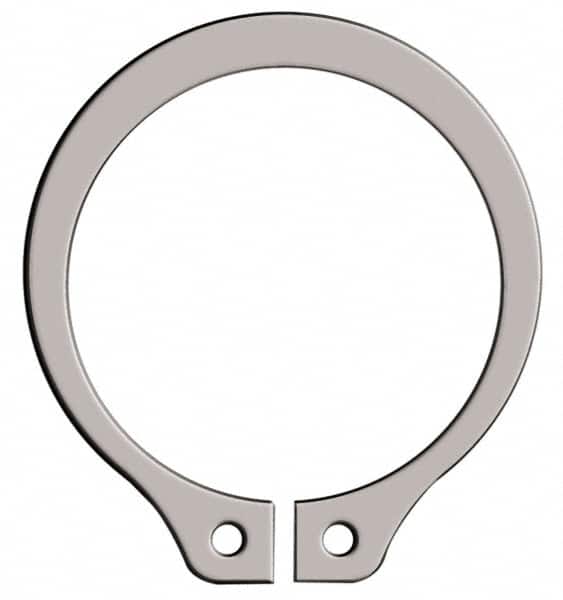

Rotor Clip - 35.71mm Groove Diam, 1-1/2" Shaft Diam, Passivated Stainless Steel, Snap External Retaining Rings - 0.056" Groove Width, 0.047" Groove Depth, 0.05" Ring Thickness, Grade 15-7 Grade 632
Item #: 79949087
Brand: Rotor Clip
Model #: SH-150SS MPS
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 38.10 |
| Shaft Diameter (Inch) | 1-1/2 |
| Shaft Diameter (Decimal Inch) | 1.5000 |
| Groove Diameter (Decimal Inch) | 1.4060 |
| Groove Diameter (mm) | 35.71 |
| Free Diameter (Decimal Inch) | 1.3870 |
| Free Diameter (mm) | 35.23 |
| Free Outside Diameter (Decimal Inch) | 1.9900 |
| Military Specification | MS 16624-4150 |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0560 |
| Groove Width (mm) | 1.42 |
| Groove Depth (Decimal Inch) | 0.0470 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Ring Thickness (mm) | 1.27 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.015 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell C 44-51 |
| Fastener Standard | AMS-5529; UNS S15700 |
