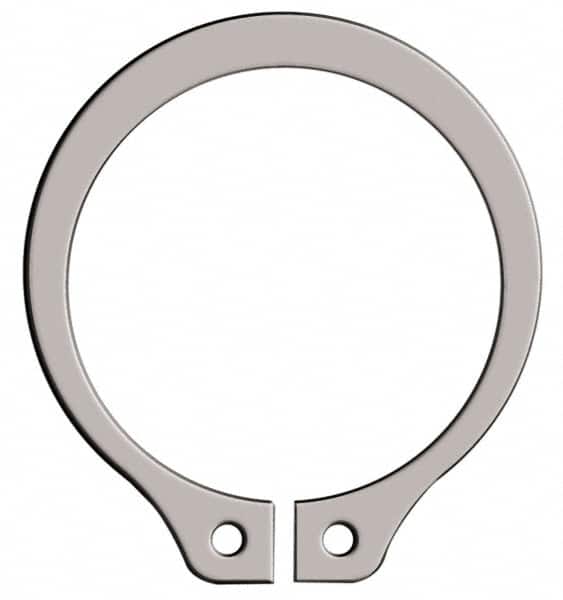

Rotor Clip - 44.93mm Groove Diam, 1-7/8" Shaft Diam, Passivated Stainless Steel, Snap External Retaining Rings - 0.068" Groove Width, 0.053" Groove Depth, 0.062" Ring Thickness, Grade 15-7 Grade 632
Item #: 79949103
Brand: Rotor Clip
Model #: SH-187SS MPS
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 47.63 |
| Shaft Diameter (Inch) | 1-7/8 |
| Shaft Diameter (Decimal Inch) | 1.8750 |
| Groove Diameter (Decimal Inch) | 1.7690 |
| Groove Diameter (mm) | 44.93 |
| Free Diameter (Decimal Inch) | 1.7350 |
| Free Diameter (mm) | 44.07 |
| Free Outside Diameter (Decimal Inch) | 2.4400 |
| Military Specification | MS 16624-4187 |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0680 |
| Groove Width (mm) | 1.73 |
| Groove Depth (Decimal Inch) | 0.0530 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Ring Thickness (mm) | 1.57 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.020 to 0.013 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Hardness | Rockwell C 44-51 |
| Fastener Standard | AMS-5529; UNS S15700 |
