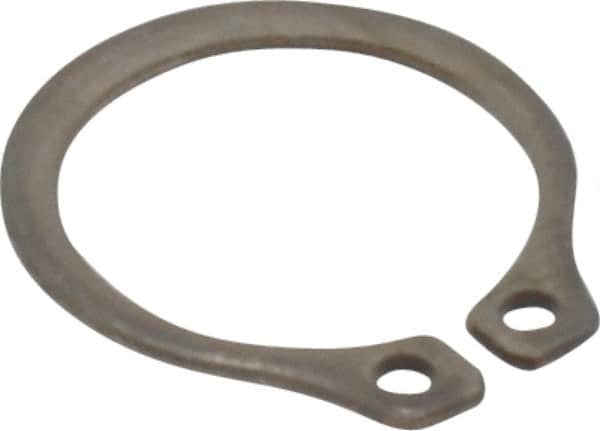

Rotor Clip - 10.46mm Groove Diam, 7/16" Shaft Diam, Passivated Stainless Steel, Snap External Retaining Rings - 0.029" Groove Width, 0.013" Groove Depth, 0.025" Ring Thickness, Grade 15-7 Grade 632
Item #: 79949137
Brand: Rotor Clip
Model #: SH-43SS MPS
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 11.11 |
| Shaft Diameter (Inch) | 7/16 |
| Shaft Diameter (Decimal Inch) | 0.4375 |
| Groove Diameter (Decimal Inch) | 0.4120 |
| Groove Diameter (mm) | 10.46 |
| Free Diameter (Decimal Inch) | 0.3950 |
| Free Diameter (mm) | 10.03 |
| Free Outside Diameter (Decimal Inch) | 0.6600 |
| Military Specification | MS 16624-4043 |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0290 |
| Groove Width (mm) | 0.74 |
| Groove Depth (Decimal Inch) | 0.0130 |
| Ring Thickness (Decimal Inch) | 0.0250 |
| Ring Thickness (mm) | 0.64 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.005 to 0.002 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell 30N 63-69.5 |
| Fastener Standard | AMS-5529; UNS S15700 |
