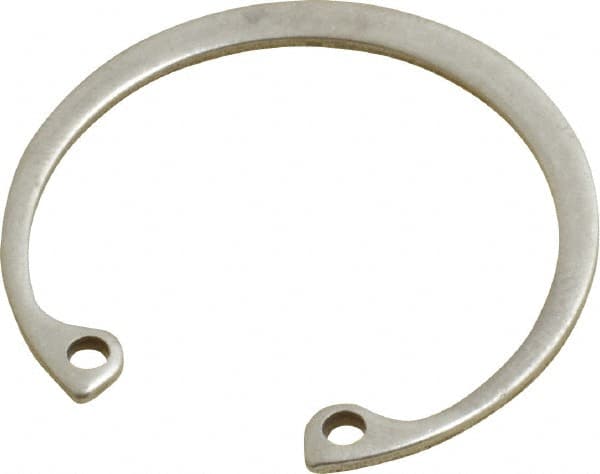

Rotor Clip - 0.05" Thick, Passivated Finish, Stainless Steel Snap Internal Retaining Ring - 0.056" Groove Width, 0.04" Groove Depth, 1.33" Groove Diam, Grade 15-7 Grade 632
Item #: 79949194
Brand: Rotor Clip
Model #: HO-125SS MPS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-1/4 |
| Bore Diameter (Decimal Inch) | 1.2500 |
| Bore Diameter (mm) | 31.75 |
| Groove Diameter (Decimal Inch) | 1.3300 |
| Groove Diameter (mm) | 33.78 |
| Groove Width (Decimal Inch) | 0.0560 |
| Groove Width (mm) | 1.42 |
| Free Outside Diameter (Decimal Inch) | 1.3880 |
| Free Outside Diameter (mm) | 35.26 |
| Military Specification | MS 16625-4125 |
| Ring Thickness (Decimal Inch) | 0.0500 |
| Ring Thickness (mm) | 1.27 |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0400 |
| Groove Depth (mm) | 1.02 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0040 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.020 to 0.025 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 4250 (Groove Safety Factor); 8932 (Ring Safety Factor) |
| Hardness | Rockwell C 44-51 |
| Fastener Standard | AMS-5529; UNS S15700 |
