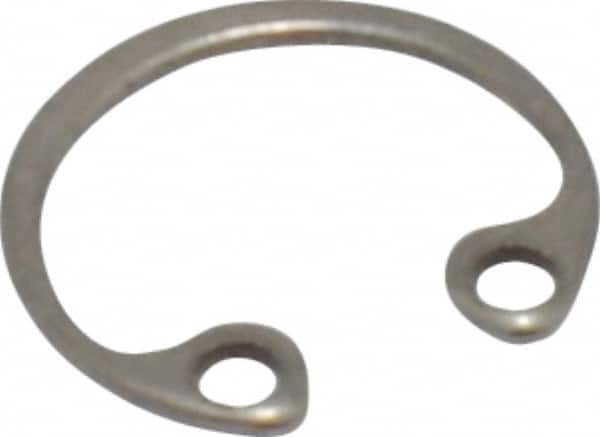

Rotor Clip - 0.015" Thick, Passivated Finish, Stainless Steel Snap Internal Retaining Ring - 0.02" Groove Width, 0.009" Groove Depth, 0.268" Groove Diam, Grade 15-7 Grade 632
Item #: 79949251
Brand: Rotor Clip
Model #: HO-25SS MPS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1/4 |
| Bore Diameter (Decimal Inch) | 0.2500 |
| Bore Diameter (mm) | 6.35 |
| Groove Diameter (Decimal Inch) | 0.2680 |
| Groove Diameter (mm) | 6.81 |
| Groove Width (Decimal Inch) | 0.0200 |
| Groove Width (mm) | 0.51 |
| Free Outside Diameter (Decimal Inch) | 0.2800 |
| Free Outside Diameter (mm) | 7.11 |
| Military Specification | MS 16625-4025 |
| Ring Thickness (Decimal Inch) | 0.0150 |
| Ring Thickness (mm) | 0.38 |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0090 |
| Groove Depth (mm) | 0.23 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0010 to 0.0010 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.002 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.010 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 190 (Groove Safety Factor); 426 (Ring Safety Factor) |
| Hardness | Rockwell 15N 82.5-86 |
| Fastener Standard | AMS-5529; UNS S15700 |
