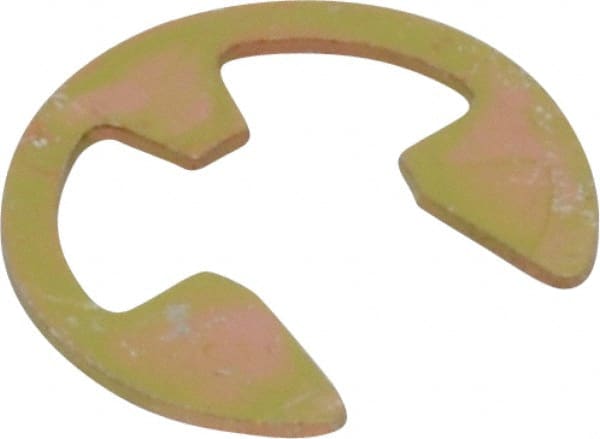

Rotor Clip - 5.33mm Groove Diam, 1/4" Shaft Diam, Cadmium-Plated Steel, E Style External Retaining Rings - 0.029" Groove Width, 0.02" Groove Depth, 0.025" Ring Thickness, Grade 1060-1090
Item #: 79949327
Brand: Rotor Clip
Model #: E-25ST MCD
Exact Tooling IR#: 04
Features and Benefits
E-style external retaining rings snap into grooves from the side of a shaft. They are ideal for use on small-diameter shafts. E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | E Style |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 6.35 |
| Shaft Diameter (Inch) | 1/4 |
| Shaft Diameter (Decimal Inch) | 0.2500 |
| Groove Diameter (Decimal Inch) | 0.2100 |
| Groove Diameter (mm) | 5.33 |
| Free Diameter (Decimal Inch) | 0.2070 |
| Free Diameter (mm) | 5.26 |
| Free Outside Diameter (Decimal Inch) | 0.5270 |
| Free Outside Diameter (mm) | 13.39 |
| Military Specification | MS 16633-1025 |
| Material | Steel |
| Finish/Coating | Cadmium-Plated |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.0290 |
| Groove Width (mm) | 0.74 |
| Groove Depth (Decimal Inch) | 0.0200 |
| Ring Thickness (Decimal Inch) | 0.0250 |
| Ring Thickness (mm) | 0.64 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (Decimal Inch) | 0.0000 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.003 to 0.001 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Ring Thickness Tol. (Plated Ring) (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell 30N 66.5-71 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
